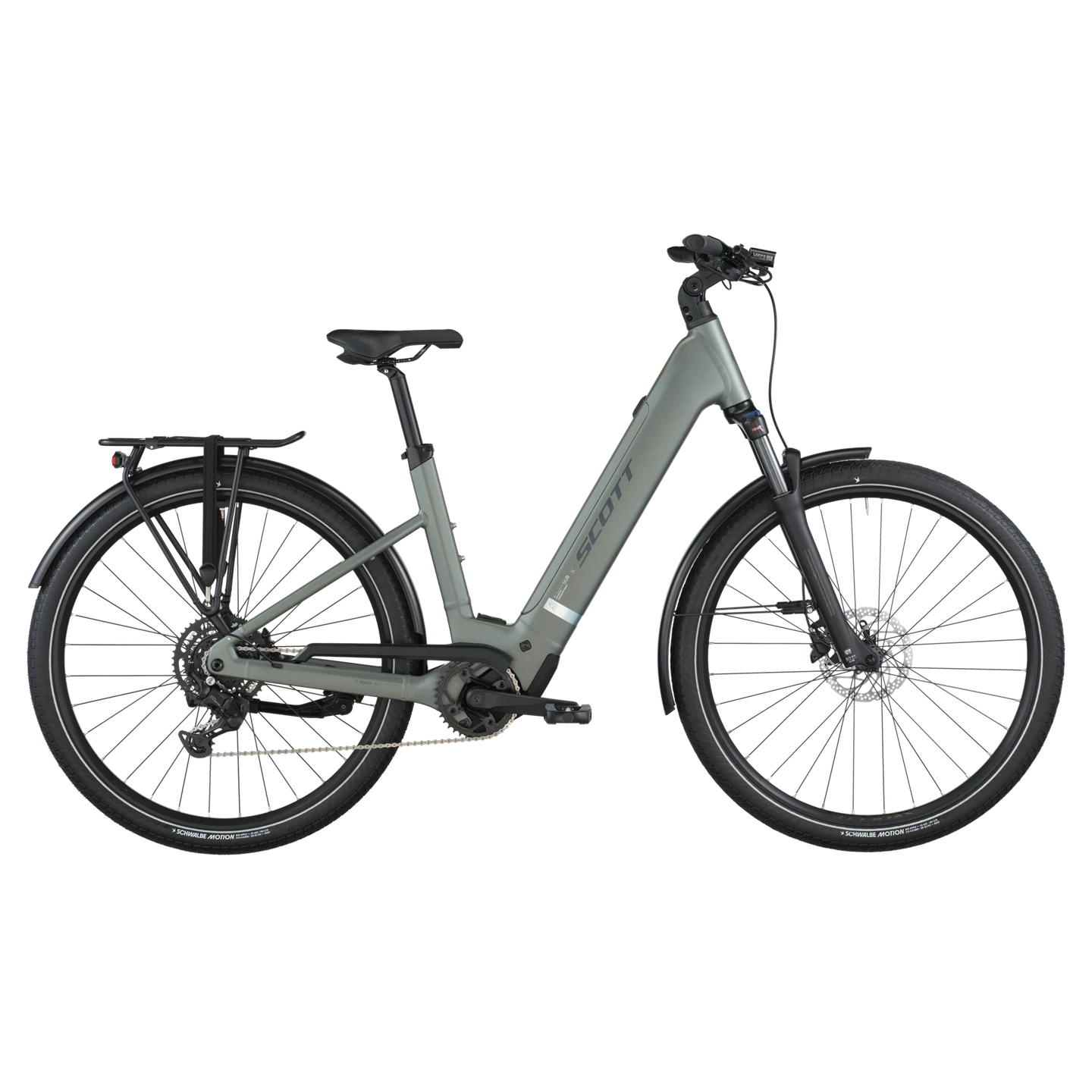

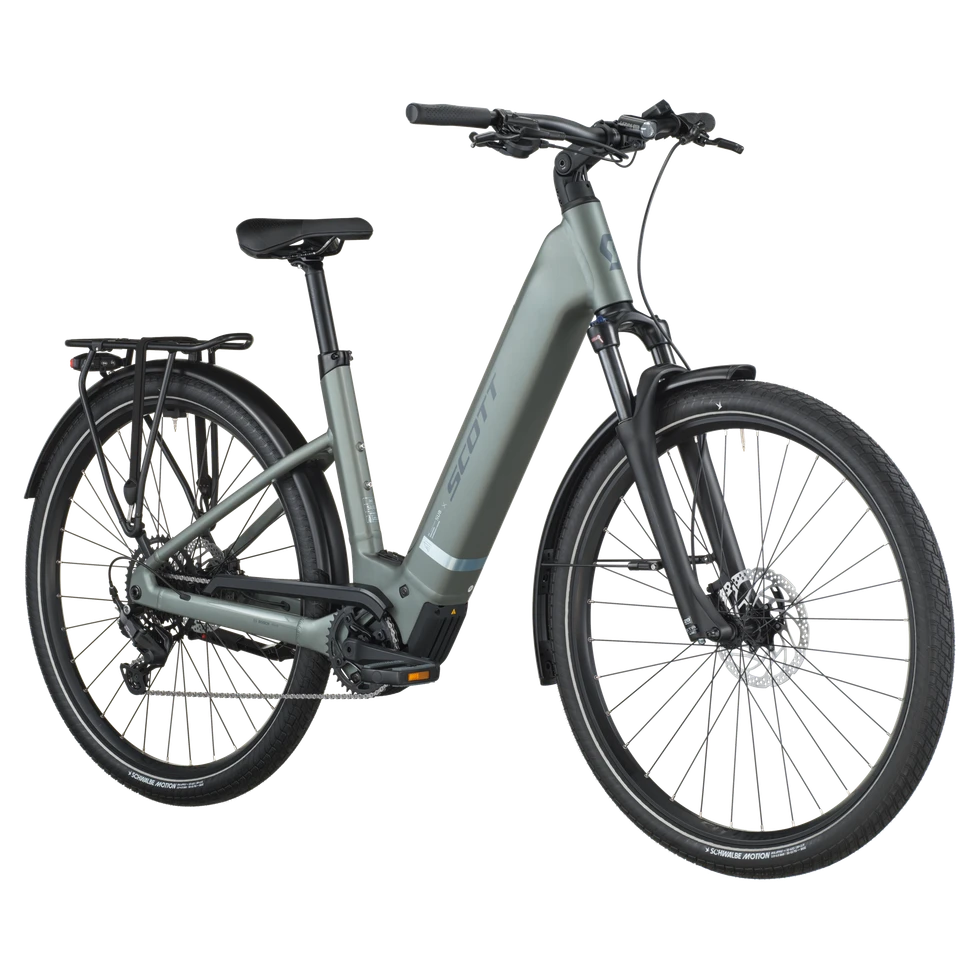

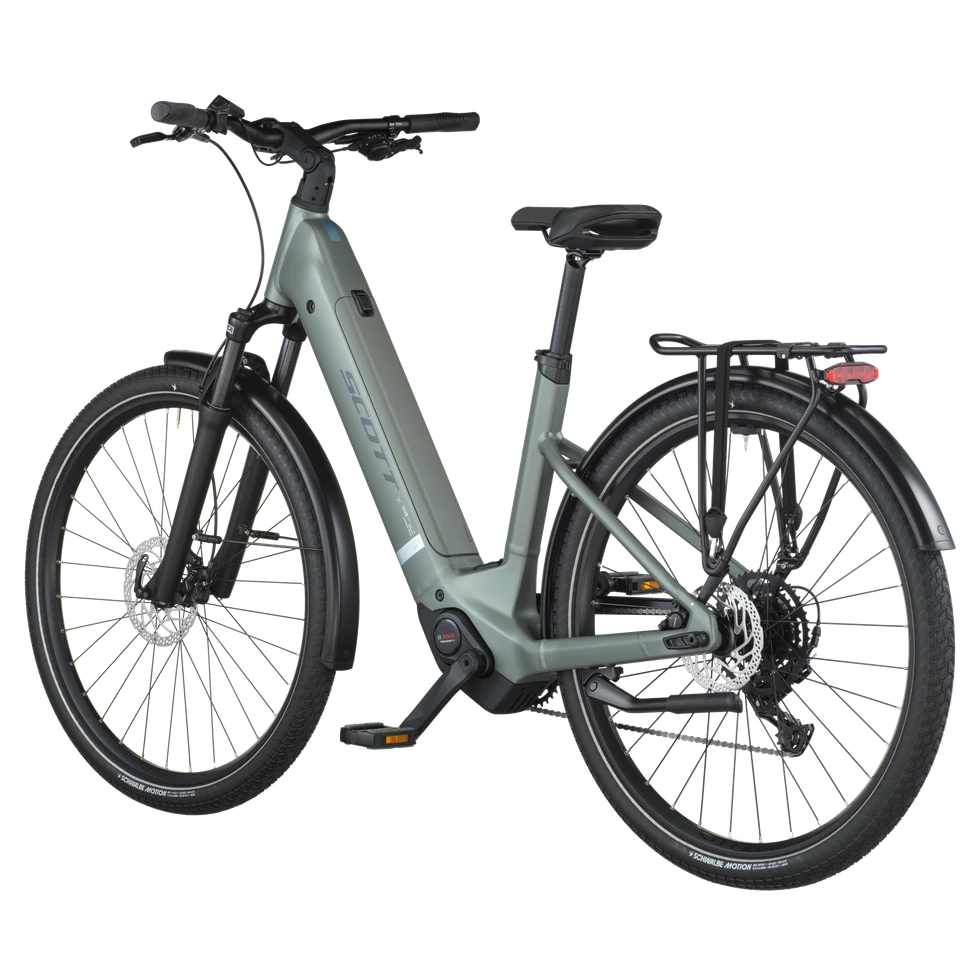

Sub Sport 30 Wave: The Innovative Urban E-Bike
The Sub Sport 30 Wave represents our compactly designed urban e-bike, aimed at meeting the needs of a wide variety of cyclists. With its cutting-edge design and powerful Bosch Performance motor, this e-bike provides an intuitive riding experience, making urban commuting an ideal option for abandoning car use and embracing two-wheeled mobility.
Features and Benefits of the Sub Sport 30 Wave
The step-through design facilitates easy access to the bike, allowing for smooth mounting and dismounting. The Sub Sport 30 is equipped with features that ensure optimal balance and great ease of use, making it perfect for:
-
Rides on bike paths outside the city
-
Navigating in high-traffic urban areas
The quiet yet powerful Bosch Performance motor, combined with a 540 Wh battery, allows for even longer commutes, providing enough range to handle more demanding errands between charges. Additionally, the bike can carry up to 25 kg on the rear rack, ideal for loading daily groceries or, alternatively, an optional child seat can be installed.
Performance and Riding Comfort
The motor’s power is delivered smoothly, while accelerations from a standstill feel both secure and natural. The multiple available assistance modes allow for tailoring the riding experience according to specific needs at any moment, ensuring the necessary support is always available.
High-Quality Technical Components
The Sub Sport 30 Wave features a front fork designed to handle the more challenging sections of trails with ease. Moreover, the 9-speed Shimano transmission allows for easy management of any terrain, offering a versatile and dynamic riding experience.
Frame
Alloy S=29”, 6061 Alloy custom butted tubing, Top extraction battery, UDH Interface, 12x148mm with 52mm Chainline
Fork
SR Suntour NVX 32 5TA NLO Coil, Tapered, 5×100 TA, Lock Out, 100mm Travel
Engine
Bosch Performance, EU: 25kmh
Battery
PowerTube 540Wh
Display
Bosch Purion 200
Battery Charger
2A Charger
Rear Derailleur
Shimano CUES RD-U4000GS 9 Speed
Crankset
FSA CK-220 170mm
Chainguide
Syncros
Chainring
FSA 38T
Chain
Shimano LG500
Sprocket
Shimano CS-LG3009 11-46 T
Brakes
Shimano BR-MT200 Disc
Rotors
Front: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm
Handlebar
Syncros UC3.0 680mm, Rise 12mm, Backsweep 15°
Stem
Syncros UC 3.0 adjustable with front Light mount
Seatpost
Syncros 3.0, 31.6mm, 350mm
Saddle
Syncros Capilano
Headset
Acros, 1.5”- 1.5”, semi integ. OD 50/61mm, ID 44/55mm
Front Hub
Shimano HBQC400B58LL, 5x100mm
Rear Hub
Shimano FHTC500HMBB, 148x12mm
Spokes
Black Spokes
Rims
Syncros X18 Disc
Front Tire
Schwalbe BigApple Performance,55-622
Rear Tire
Schwalbe BigApple Performance,55-622
Lights
Front Lezyne Hecto E65, Rear Lezyne Light
Luggage rack
Racktime carrier SnapIt 2.0 25KG
Extra
Curana alloy profile Fender, Ursus Kickstand
Pedals
Marwi SP-828
